这篇为第1种方法,参考MOS文档,使用gdb中断后open数据库,再手工执行update语句保证 global_name 不为空。

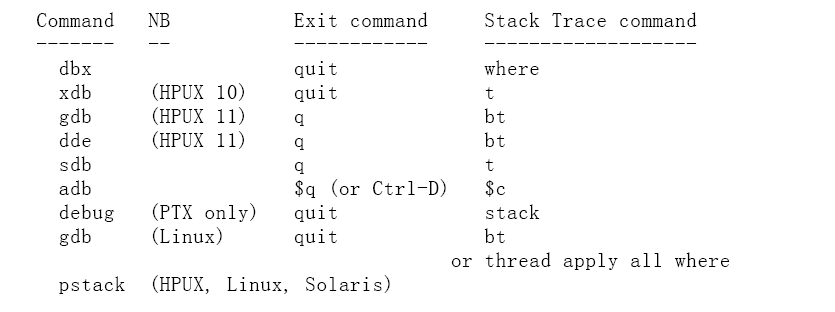

首先了解一下,不同操作系统平台上的诊断工具有所不同,Linux和AIX上都可以使用gdb来诊断。

无标题

AIX(Big Endian)使用gdb诊断的例子请参考:一次体验N种报错的Oracle数据库恢复(ORA-704 ORA-604 ORA-600[25016] ORA-376)
我这里是Linux,即Little Endian 。

测试时,首先把global_name 置空:

[oracle@lunar ~]$ ss

SQL*Plus: Release 11.2.0.3.0 Production on Mon Aug 4 06:47:18 2014

Copyright (c) 1982, 2011, Oracle.  All rights reserved.

Welcome Lunar's oracle world!

Love you , baby !


Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production
With the Partitioning and Real Application Testing options


Session altered.

Elapsed: 00:00:00.01
06:47:20 SYS@lunarp>select * from global_name;

GLOBAL_NAME
------------------------------------------------------------------------------------------------------------------------------------------------------
LUNAR

Elapsed: 00:00:00.06
07:21:29 SYS@lunarp>oradebug setmypid
alter session set tracefile_identifier='lunar';
Statement processed.
07:36:18 SYS@lunarp>
Session altered.

Elapsed: 00:00:00.06
07:36:18 SYS@lunarp>oradebug event 10046 trace name context forever,level 12;
Statement processed.
07:36:22 SYS@lunarp>update global_name set global_name='';

1 row updated.

Elapsed: 00:00:00.48
07:36:27 SYS@lunarp>commit;

Commit complete.

Elapsed: 00:00:00.02
07:36:31 SYS@lunarp>oradebug event 10046 trace name context off
Statement processed.
07:36:35 SYS@lunarp>oradebug close_trace
oradebug tracefile_name
Statement processed.
07:36:39 SYS@lunarp>/u01/app/oracle/diag/rdbms/lunarp/lunarp/trace/lunarp_ora_11544_lunar.trc
SYS@lunarp>shutdown abort
ORACLE instance shut down.
SYS@lunarp>startup
Welcome Lunar's oracle world!

Love you , baby !

ORACLE instance started.

Total System Global Area  626327552 bytes
Fixed Size                  2230952 bytes
Variable Size             243271000 bytes
Database Buffers          373293056 bytes
Redo Buffers                7532544 bytes
Database mounted.
Welcome Lunar's oracle world!

Love you , baby !

ORA-01092: ORACLE instance terminated. Disconnection forced
ORA-00600: internal error code, arguments: [18062], [], [], [], [], [], [], [], [], [], [], []
Process ID: 11995
Session ID: 125 Serial number: 5


SYS@lunarp>

此时,trace中显示 执行下SQL命令时,数据库报错:

PARSING IN CURSOR #140086475835376 len=55 dep=1 uid=0 oct=3 lid=0 tim=1407167741390301 hv=1950821498 ad='7f2eaec8' sqlid='459f3z9u4fb3u'
select value$ from props$ where name = 'GLOBAL_DB_NAME'
END OF STMT
PARSE #140086475835376:c=1999,e=870,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=415205717,tim=1407167741390297
EXEC #140086475835376:c=0,e=32,p=0,cr=0,cu=0,mis=0,r=0,dep=1,og=4,plh=415205717,tim=1407167741390424
FETCH #140086475835376:c=0,e=44,p=0,cr=2,cu=0,mis=0,r=1,dep=1,og=4,plh=415205717,tim=1407167741390486
Incident 4937 created, dump file: /u01/app/oracle/diag/rdbms/lunarp/lunarp/incident/incdir_4937/lunarp_ora_12099_i4937.trc
ORA-00600: internal error code, arguments: [18062], [], [], [], [], [], [], [], [], [], [], []

ORA-00600: internal error code, arguments: [18062], [], [], [], [], [], [], [], [], [], [], []
ORA-00600: internal error code, arguments: [18062], [], [], [], [], [], [], [], [], [], [], []

[oracle@lunar ~]$ ps -ef|grep LOCAL=YES
oracle   12183 12142  0 08:03 ?        00:00:00 oraclelunarp (DESCRIPTION=(LOCAL=YES)(ADDRESS=(PROTOCOL=beq)))
oracle   12211 12186  0 08:08 pts/5    00:00:00 grep LOCAL=YES
[oracle@lunar ~]$

下面使用gdb进行恢复:


[oracle@lunar ~]$ gdb $ORACLE_HOME/bin/oracle 12183
GNU gdb (GDB) Red Hat Enterprise Linux (7.0.1-42.el5)
Copyright (C) 2009 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.  Type "show copying"
and "show warranty" for details.
This GDB was configured as "x86_64-redhat-linux-gnu".
For bug reporting instructions, please see:
<http://www.gnu.org/software/gdb/bugs/>...
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/bin/oracle...(no debugging symbols found)...done.
Attaching to program: /u01/app/oracle/product/11.2.0.3/dbhome_1/bin/oracle, process 12183
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libodm11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libodm11.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libcell11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libcell11.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libskgxp11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libskgxp11.so
Reading symbols from /lib64/librt.so.1...(no debugging symbols found)...done.
Loaded symbols for /lib64/librt.so.1
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libnnz11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libnnz11.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libclsra11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libclsra11.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libdbcfg11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libdbcfg11.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libhasgen11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libhasgen11.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libskgxn2.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libskgxn2.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libocr11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libocr11.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libocrb11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libocrb11.so
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libocrutl11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libocrutl11.so
Reading symbols from /usr/lib64/libaio.so.1...(no debugging symbols found)...done.
Loaded symbols for /usr/lib64/libaio.so.1
Reading symbols from /lib64/libdl.so.2...(no debugging symbols found)...done.
Loaded symbols for /lib64/libdl.so.2
Reading symbols from /lib64/libm.so.6...(no debugging symbols found)...done.
Loaded symbols for /lib64/libm.so.6
Reading symbols from /lib64/libpthread.so.0...(no debugging symbols found)...done.
[Thread debugging using libthread_db enabled]
Loaded symbols for /lib64/libpthread.so.0
Reading symbols from /lib64/libnsl.so.1...(no debugging symbols found)...done.
Loaded symbols for /lib64/libnsl.so.1
Reading symbols from /lib64/libc.so.6...(no debugging symbols found)...done.
Loaded symbols for /lib64/libc.so.6
Reading symbols from /lib64/ld-linux-x86-64.so.2...(no debugging symbols found)...done.
Loaded symbols for /lib64/ld-linux-x86-64.so.2
Reading symbols from /usr/lib64/libnuma.so.1...(no debugging symbols found)...done.
Loaded symbols for /usr/lib64/libnuma.so.1
Reading symbols from /lib64/libnss_files.so.2...(no debugging symbols found)...done.
Loaded symbols for /lib64/libnss_files.so.2
Reading symbols from /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libnque11.so...(no debugging symbols found)...done.
Loaded symbols for /u01/app/oracle/product/11.2.0.3/dbhome_1/lib/libnque11.so
0x0000003e9880d9b0 in __read_nocancel () from /lib64/libpthread.so.0
(gdb) break kokiasg
Breakpoint 1 at 0x13c162c
(gdb)

然后,回到sqlplus的会话,直接执行alter database open:


SYS@lunarp>alter database open;
.....

回到gdb窗口:

(gdb) continue
Breakpoint 1, 0x00000000013c162c in kokiasg ()
(gdb)

回到sqlplus会话,看到数据库已经open:

SYS@lunarp>conn / as sysdba
Welcome Lunar's oracle world!

Love you , baby !

Connected.
ERROR:
ORA-22303: type "SYS"."DBMSOUTPUT_LINESARRAY" not found
ORA-00942: table or view does not exist
ORA-06508: PL/SQL: could not find program unit being called: "SYS.DBMS_OUTPUT"
ORA-06512: at line 1



Session altered.

Elapsed: 00:00:00.00
08:14:06 SYS@lunarp>select status from v$instance;

STATUS
------------
OPEN

Elapsed: 00:00:00.01
SYS@lunarp>

此时alert.log显示:

Mon Aug 04 08:11:18 2014
alter database open
Beginning crash recovery of 1 threads
 parallel recovery started with 2 processes
Started redo scan
Completed redo scan
 read 40 KB redo, 30 data blocks need recovery
Started redo application at
 Thread 1: logseq 84, block 2
Recovery of Online Redo Log: Thread 1 Group 3 Seq 84 Reading mem 0
  Mem# 0: /stage/lunar/redo03.log
Completed redo application of 0.03MB
Completed crash recovery at
 Thread 1: logseq 84, block 83, scn 1683842
 30 data blocks read, 30 data blocks written, 40 redo k-bytes read
Mon Aug 04 08:11:20 2014
LGWR: STARTING ARCH PROCESSES
Mon Aug 04 08:11:20 2014
ARC0 started with pid=20, OS id=12288
ARC0: Archival started
LGWR: STARTING ARCH PROCESSES COMPLETE
ARC0: STARTING ARCH PROCESSES
Mon Aug 04 08:11:21 2014
ARC1 started with pid=21, OS id=12290
Mon Aug 04 08:11:21 2014
ARC2 started with pid=22, OS id=12292
Thread 1 advanced to log sequence 85 (thread open)
Mon Aug 04 08:11:21 2014
ARC3 started with pid=23, OS id=12294
ARC1: Archival started
ARC2: Archival started
ARC1: Becoming the 'no FAL' ARCH
ARC1: Becoming the 'no SRL' ARCH
ARC2: Becoming the heartbeat ARCH
Thread 1 opened at log sequence 85
  Current log# 1 seq# 85 mem# 0: /stage/lunar/redo01.log
Successful open of redo thread 1
MTTR advisory is disabled because FAST_START_MTTR_TARGET is not set
Mon Aug 04 08:11:21 2014
SMON: enabling cache recovery
Archived Log entry 160 added for thread 1 sequence 84 ID 0x92fd63eb dest 1:
Mon Aug 04 08:11:21 2014
NSA2 started with pid=24, OS id=12300
ARC2: Standby redo logfile selected for thread 1 sequence 84 for destination LOG_ARCHIVE_DEST_2
ARC3: Archival started
ARC0: STARTING ARCH PROCESSES COMPLETE
Thread 1 advanced to log sequence 86 (LGWR switch)
  Current log# 2 seq# 86 mem# 0: /stage/lunar/redo02.log
******************************************************************
LGWR: Setting 'active' archival for destination LOG_ARCHIVE_DEST_2
******************************************************************
[12183] Successfully onlined Undo Tablespace 2.
Undo initialization finished serial:0 start:221099734 end:221101944 diff:2210 (22 seconds)
Verifying file header compatibility for 11g tablespace encryption..
Verifying 11g file header compatibility for tablespace encryption completed
SMON: enabling tx recovery
Database Characterset is AL32UTF8
Archived Log entry 162 added for thread 1 sequence 85 ID 0x92fd63eb dest 1:
LNS: Standby redo logfile selected for thread 1 sequence 86 for destination LOG_ARCHIVE_DEST_2
ARC0: Standby redo logfile selected for thread 1 sequence 85 for destination LOG_ARCHIVE_DEST_2

现在修改global_name = ‘lunarbb’:

08:14:32 SYS@lunarp>update global_name set global_name = 'lunarbb';

1 row updated.

Elapsed: 00:00:00.12
08:15:05 SYS@lunarp>commit;

Commit complete.

Elapsed: 00:00:00.00
08:15:07 SYS@lunarp>select * from global_name;

GLOBAL_NAME
------------------------------------------------------------------------------------------------------------------------------------------------------
lunarbb

Elapsed: 00:00:00.00
08:15:27 SYS@lunarp>

(gdb) kill
Kill the program being debugged? (y or n) y
(gdb) quit
[oracle@lunar ~]$

再次正常启动数据库,数据库已经open了,且GLOBAL_NAME显示为我们刚才修改的:lunarbb

SYS@lunarp>startup
Welcome Lunar's oracle world!

Love you , baby !

ORACLE instance started.

Total System Global Area  626327552 bytes
Fixed Size                  2230952 bytes
Variable Size             243271000 bytes
Database Buffers          373293056 bytes
Redo Buffers                7532544 bytes
Database mounted.
Welcome Lunar's oracle world!

Love you , baby !

Database opened.
SYS@lunarp>select * from global_name;

GLOBAL_NAME
------------------------------------------------------------------------------------------------------------------------------------------------------
lunarbb

Elapsed: 00:00:00.05
SYS@lunarp>
